Build Your First Connector

In this tutorial, you will create a connector that calls an external weather API, store credentials securely as a secret, test the connection, and call it from widget code. By the end, you will have a working connector that fetches live data.

Before You Start

• You have access to Connectors in your platform (Integrations → Developer Studio → Connectors)
• You have an API key for a weather service — sign up at weatherapi.com for a free key
• Optional: a published widget to call the connector from (see Your First Widget)

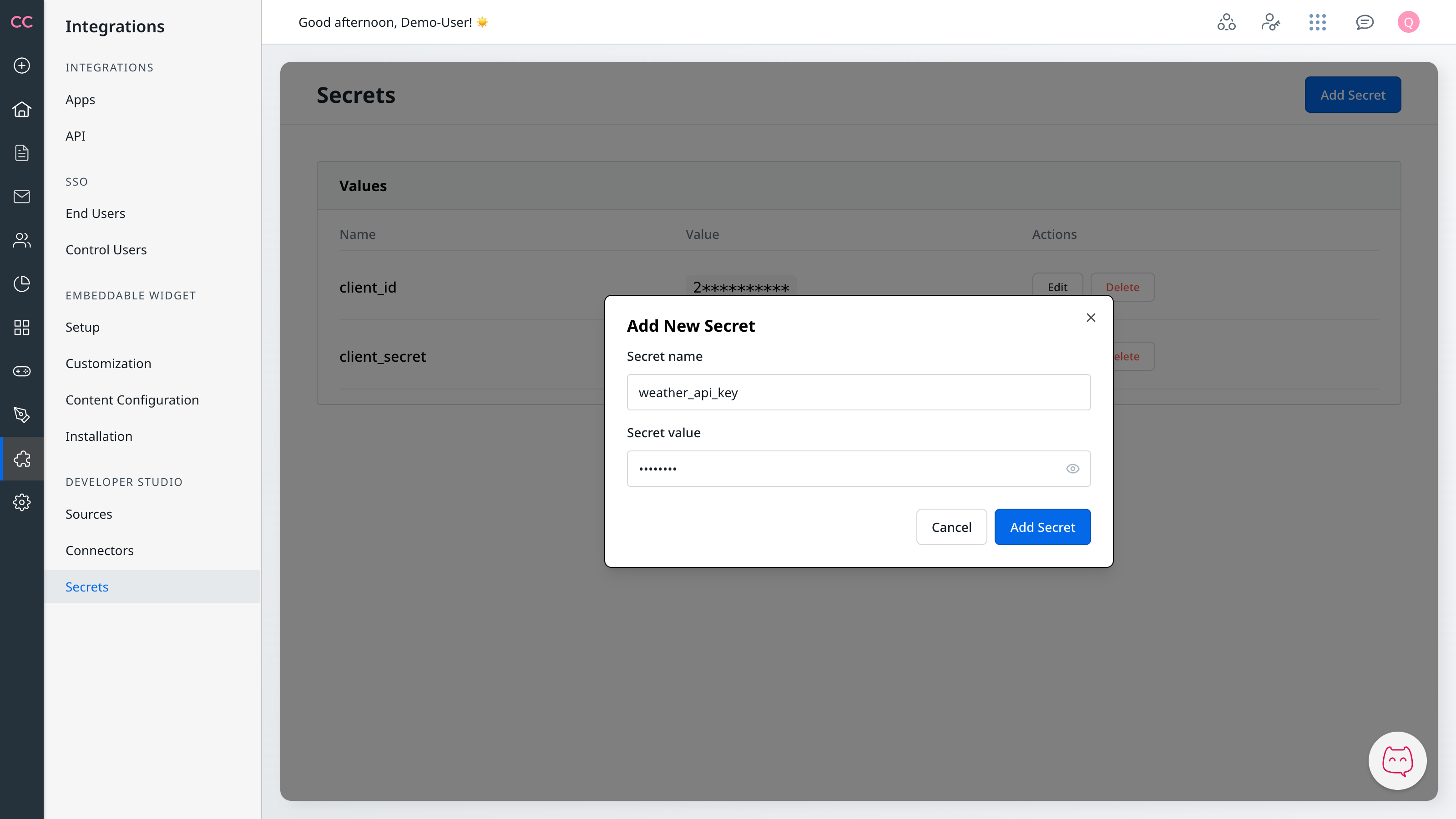

Step 1: Store Your API Key as a Secret

Navigate to Integrations → Developer Studio → Secrets.

Click Create Secret and fill in:

• Name: weather_api_key
• Value: your WeatherAPI key

Click Save.

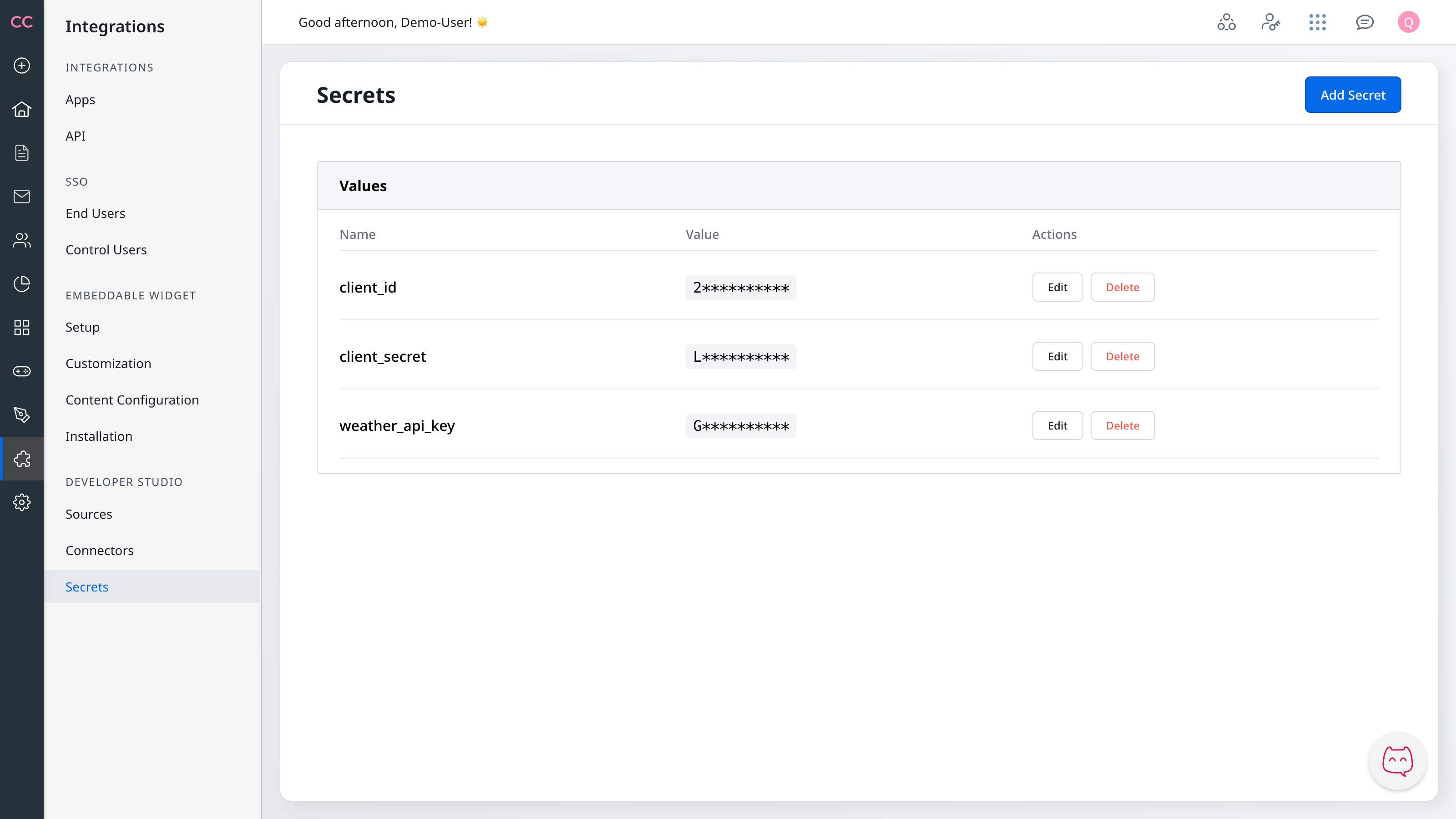

You should see the secret appear in your secrets list. The value is hidden — the platform stores it encrypted and never exposes it to the browser.

Step 2: Create the Connector

Navigate to Integrations → Developer Studio → Connectors. Click Create Connector and fill in:

• Connection Name: Weather API
• Endpoint URL: https://api.weatherapi.com/v1/current.json
• HTTP Method: GET

Click Save.

You should see a new connector in your connector list. The platform derives the permalink weather-api from the name — you will use this identifier when calling the connector from widget code.

Step 3: Configure Authentication

Open the connector you just created. In the Authentication section, set Authentication Type to API Key and fill in:

• Key: key
• Value: {{ get_secret('weather_api_key') }}
• In: Query Parameter

Click Save.

You should see the authentication section updated to show API Key with your secret reference. The platform resolves {{ get_secret('weather_api_key') }} at request time — the actual key is never stored in the connector definition.

Step 4: Test the Connection

Click Test Connection in the connector editor toolbar. In the test form, add a query parameter:

• Key: q
• Value: London

Click Run Test.

You should see a successful response with weather data for London — temperature, condition, and location details. If you see a 401 Unauthorized error, open Integrations → Developer Studio → Secrets, verify the secret name matches exactly (names are case-sensitive), and re-run the test.

Step 5: Call the Connector from Widget Code

Open your widget HTML file and add the SDK script tag and the following code:

<script src="https://static.customer-hub.northpass.com/widget-sdk/latest/index.umd.js"></script>
<script>
(async () => {
  const sdk = new window.WidgetServiceSDK();
  try {
    const data = await sdk.connectors.execute({
      permalink: "weather-api",
      method: "GET",
      queryParams: { q: "Warsaw" }
    });
    console.log("Weather data:", data);
  } catch (error) {
    console.error("Connector request failed:", error);
  }
})();
</script>

Publish the widget and open it in your browser with Developer Tools open (F12 or Cmd+Option+I). Go to the Console tab.

You should see the weather data object printed — city name, temperature, condition, and other fields returned by the API.

Step 6: Display the Data

Update the widget HTML to show the weather data on screen. Replace the console.log call with DOM manipulation inside the shadow root:

<div id="weather">Loading...</div>
<script src="https://static.customer-hub.northpass.com/widget-sdk/latest/index.umd.js"></script>
<script>
(async () => {
  const sdk = new window.WidgetServiceSDK();
  try {
    const data = await sdk.connectors.execute({
      permalink: "weather-api",
      method: "GET",
      queryParams: { q: "Warsaw" }
    });
    // Find the widget host and query inside its shadow root
    var hosts = document.querySelectorAll(
      'gs-cc-registry-widget[data-widget-type*="weather"]'
    );
    hosts.forEach(function(host) {
      var el = host.shadowRoot && host.shadowRoot.getElementById("weather");
      if (el) {
        el.textContent = data.location.name + ": " + data.current.temp_c + "°C, " + data.current.condition.text;
      }
    });
  } catch (error) {
    console.error("Connector request failed:", error);
  }
})();
</script>

The widget code runs inside Shadow DOM, so document.getElementById() cannot reach elements inside the widget. Instead, find the widget host element and query through its shadowRoot. See Rendering & DOM for details on this pattern.

Publish and open the widget again.

You should see your widget display a line like Warsaw: 12°C, Partly cloudy — live weather data fetched through the connector.

What You Built

You created a connector that proxies requests to an external API, stored an API key securely as a secret, configured API Key authentication using a secret reference, verified the setup with the built-in test tool, and called the connector from widget code using the SDK.

What's Next

• Configuration — all connector fields and URL rules
• Authentication — OAuth Client Credentials and other auth types
• Template Variables — dynamic values with Jinja2
• Testing & Debugging — performance headers and troubleshooting
• Repository Registry — define connectors in code alongside your widgets
• Example connectors_registry.json in the template repository — working connector definitions with authentication and response transformation
